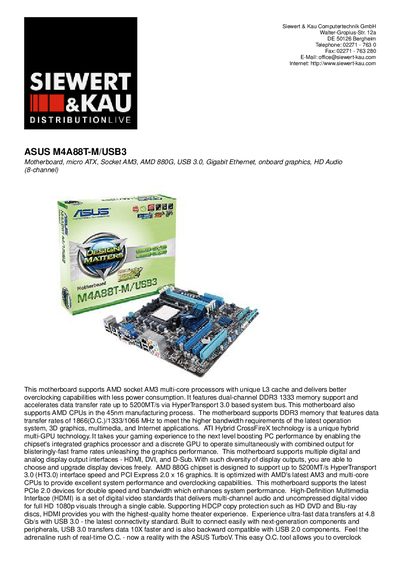

ASUS M4A88T-M/USB3 Motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the 45nm manufacturing process.
The ASUS M4A88T-M/USB3 is a micro ATX motherboard built for AMD AM3 processors. It integrates the AMD 880G chipset, ATI Radeon HD 4250 graphics, and Realtek RTL8111E Gigabit Ethernet, offering a range of display outputs (HDMI, DVI, VGA) and high‑speed connectivity.
Key hardware features include dual‑channel DDR3 memory support up to 16 GB, six SATA‑300 ports with RAID options, two SuperSpeed USB 3.0 ports, and a variety of USB 2.0 ports. The board also provides extensive audio capabilities with an 8‑channel HD audio codec and a suite of ASUS utilities for overclocking and system management.
| Form Factor | Micro ATX |
|---|---|
| Chipset | AMD 880G / AMD SB710 |
| Processor Socket | Socket AM3 |
| Supported Processors | Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6 |
| Memory Type | DDR3 SDRAM, up to 2600 MHz |
| USB Ports | 2 x SuperSpeed USB 3.0, 4 x Hi‑Speed USB, 6 x Hi‑Speed via headers (total 12 USB) |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| Graphics | ATI Radeon HD 4250 (shared video memory) |
| Audio | HD Audio 8‑channel (VIA VT17088) |
| Storage Interfaces | 6 x SATA‑300 (RAID) + 1 x ATA‑133 |
It uses a Socket AM3 for AMD processors.
The motherboard includes two SuperSpeed USB 3.0 ports.
The board features an ATI Radeon HD 4250 shared video memory (UMA) graphics controller.
