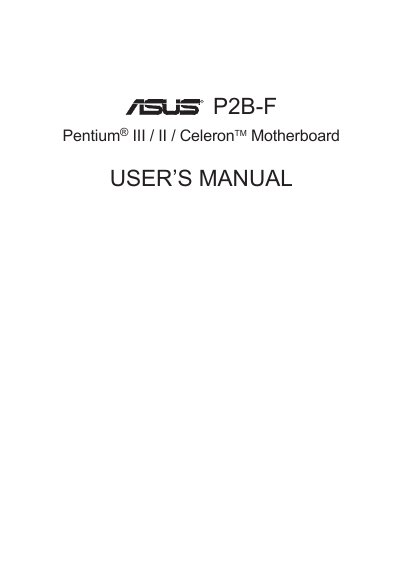

ASUS P2B-F Motherboard User Manual

ASUS P2B-F is a motherboard

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 80
File format: PDF
File size: 2 MB
Published: 09 May, 2012
Updated: 30 September, 2023
Model: P2B-F
MD5 checksum: CC8261B6833259349A6373BB4F9E9DE7
PDF: ASUS P2B-F Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASUS P2B-F motherboard. It includes an introduction, a checklist of items, and detailed hardware setup steps such as CPU installation, memory installation, and expansion card configuration.

Additional sections describe BIOS setup, software utilities, and reference material for the bundled ASUS PC Probe and other optional components. An appendix provides technical background on technologies like MMX, PCI, and UltraDMA/33.

What's inside

Introduction
Features
Hardware Setup
BIOS Setup
Software Setup
Software Reference
Appendix

Specifications

Expansion slots	5 × 32‑bit PCI, 2 × 16‑bit ISA
IDE controller	Onboard PCI Bus Master IDE, UltraDMA/33

Frequently asked questions

What expansion slots are provided on this motherboard?

The board offers five 32‑bit PCI slots and two 16‑bit ISA slots.

Does the motherboard support UltraDMA for IDE devices?

Yes, the onboard IDE controller supports UltraDMA/33 transfers.
