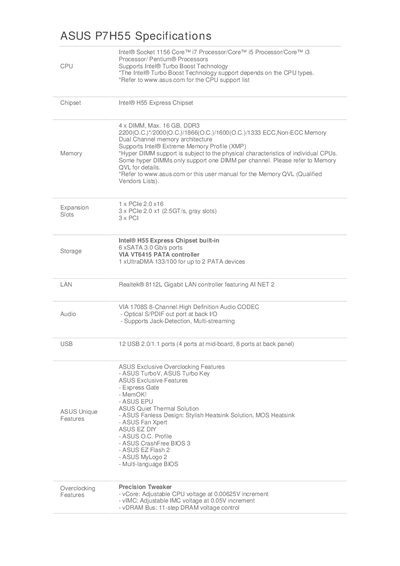

ASUS P7H55 is a motherboard that supports Intel Socket 1156 and various CPU types. It features high-speed memory, expansion slots, and a variety of interfaces.
The ASUS P7H55 motherboard supports Intel Socket 1156 processors, including Core i7, i5, i3 and Pentium CPUs, and is built around the Intel H55 Express chipset. It offers four DDR3 DIMM slots for up to 16 GB of memory, dual‑channel architecture, and supports Intel Turbo Boost and XMP profiles.
The board includes one PCIe 2.0 x16 slot, three PCIe 2.0 x1 slots, six SATA 3.0 Gb/s ports, and a Realtek 8112L Gigabit LAN controller. Audio is handled by a VIA 1708S 8‑channel HD audio codec, and there are 12 USB 2.0/1.1 ports. ASUS-specific features such as TurboV, Turbo Key, Precision Tweaker, and overclocking voltage controls are also documented.
| CPU Socket | Intel Socket 1156 |
|---|---|
| Supported CPUs | Core i7, i5, i3, Pentium |
| Chipset | Intel H55 Express |
| Memory Slots | 4x DIMM, max 16 GB DDR3 |
| Memory Types | DDR3 1333‑2200, ECC and Non‑ECC |
| PCI Express Slots | 1x PCIe 2.0 x16, 3x PCIe 2.0 x1 |
| SATA Ports | 6 x SATA 3.0 Gb/s |
| LAN Controller | Realtek 8112L Gigabit LAN |
| Audio Codec | VIA 1708S 8‑Channel HD Audio |
| USB Ports | 12 USB 2.0/1.1 ports |
| Form Factor | ATX |
It uses an Intel Socket 1156.
The board provides six SATA 3.0 Gb/s ports.
