This document describes the features and characteristics of the P5SD2-FM motherboard produced by ASUSTeK COMPUTER INC. The document provides detailed information about the product, including provisions for product repair, modification, and alteration, as well as terms for product warranty and service. The document also specifically emphasizes ASUS's disclaimer of warranty for the product.

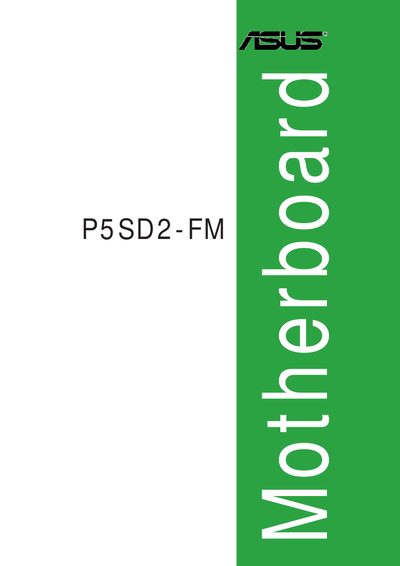

This manual introduces the ASUS P5SD2-FM motherboard, covering its layout, CPU and memory installation, expansion slots, and connector details. Safety information and FCC compliance statements are included to ensure proper handling and installation.
The document also explains BIOS setup options, power management features, password configuration, and provides a detailed specifications summary of the chipset, memory support, storage interfaces, audio, networking, and USB ports.
| CPU Socket | LGA775 |
|---|---|
| Supported CPUs | Intel Pentium® D, Intel® Pentium® 4, Celeron |
| Northbridge Chipset | SiS 649DX |
| Southbridge Chipset | SiS 966 |
| PCI Express Slots | 1 x PCI‑Express x16, 1 x PCI‑Express x1, 2 x PCI |
| SATA Ports | 4 x Serial ATA (RAID 0, RAID 1, RAID 0+1, JBOD) |
| USB Ports | 8 x USB 2.0 |
| LAN Interface | Realtek RTL 8201CL 10/100 Mbps |
| Audio Codec | Realtek ALC880 8‑channel |
Follow the same steps as when setting a user password, then select the desired password check option.
Disconnect the power cable from the electrical outlet before relocating or adding devices to the system.
