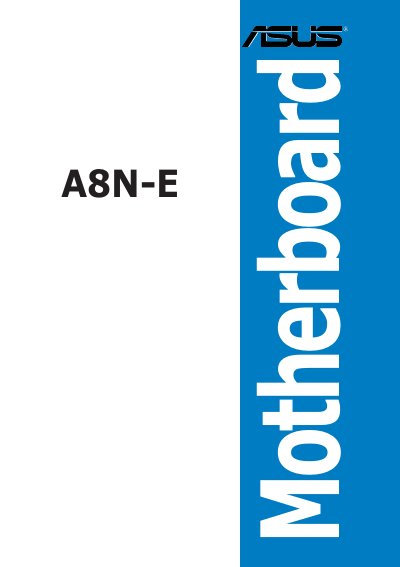

This document is a user manual for the A8N-E motherboard by ASUSTeK COMPUTER INC. The manual provides detailed information on the features and characteristics of the motherboard.
This manual introduces the ASUS A8N-E motherboard, covering its physical layout, component placement, and safety precautions for handling and installation. It includes detailed guidance on connecting power, signal cables, and expansion cards, as well as recommended practices to avoid electrical hazards.
The guide also explains BIOS configuration, including CPU and power settings, and describes the included software utilities such as the Cool ‘n’ Quiet!™ technology driver and application. Instructions for enabling the feature, launching the software, and configuring power management in Windows are provided.
| PCI Express X16 Slot | Present |
|---|---|
| PCI Express X1 Slot | Present |
| AMD Cool ‘n’ Quiet! Technology | Supported |
| ACPI 2.0 Support | Enabled in BIOS |
Enter the BIOS by pressing during POST, go to Advanced > CPU Configuration > AMD CPU Cool & Quiet Configuration, set Cool ‘n’ Quiet to Enabled, enable ACPI 2.0 Support, save changes, and reboot.
Disconnect the power cable from the outlet, unplug all device power cables before connecting signal cables, keep metal objects away from connectors, avoid moisture and extreme temperatures, and place the system on a stable surface.
