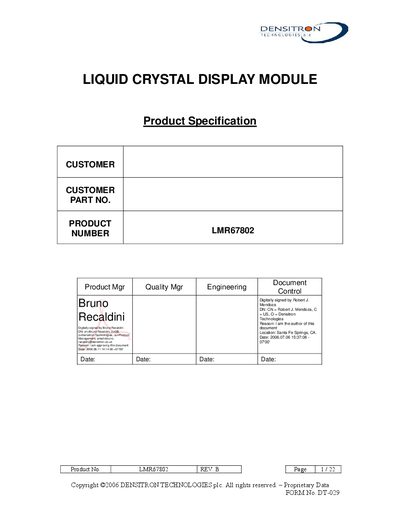

This document describes the features and characteristics of the LMR67802 product, including mechanical characteristics, electrical characteristics, optical characteristics, and backlight characteristics.
The Densitron LMR67802 is a 320 × RGB × 234‑dot TFT LCD module with a transmissive‑negative mode and edge CCFL backlight. It offers a compact size of 148 mm × 120 mm × 19.4 mm and a viewing area of 115.48 mm × 86.91 mm, suitable for a variety of display applications.
The document provides full mechanical dimensions, electrical ratings, pin assignments, optical performance, and reliability test results. It also includes handling precautions to protect the liquid‑crystal panel from damage, static discharge, and improper cleaning.
| Display Format | 320 × RGB × 234 Dots |
|---|---|
| Colour Depth | 32K |
| Overall Dimensions | 148.0 W × 120.0 H × 19.4 mm (max) |
| LCD Type | TFT |
| Mode | Transmissive – Negative |
| Backlight Type | Edge CCFL |
| Operating Temperature | 0 °C ~ +60 °C |
| Storage Temperature | -25 °C ~ +80 °C |
| Power Supply Voltage | 0 V to 5.5 Vpp |
| Current Consumption | up to 550 mA |
The module operates from 0 °C to +60 °C.
It uses an edge CCFL backlight.
The power supply voltage range is 0 V to 5.5 Vpp.
