This document is about the product specification of an OLED module supplied by CMEL. The document describes the driving mode, color mode, driver IC, interface, and other features of the module.

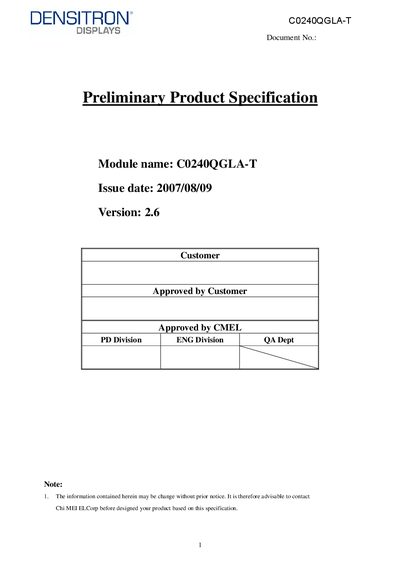

This document provides the preliminary product specification for the Densitron C0240QGLA‑T OLED display module. It includes purpose, general description, mechanical dimensions, absolute maximum ratings, electrical characteristics, and reliability test procedures.
Key sections cover driving mode, color depth, interface options, mechanical data such as diagonal size and resolution, power supply limits, operating temperature ranges, and detailed DC/AC characteristics. The reliability test chapter lists temperature, humidity, shock, vibration and drop tests required for qualification.
| Diagonal Size | 24" |
|---|---|
| Resolution | 240 x 320 |
| Pixel Pitch | 0.051 mm |
| Power Supply Voltage 1 (VDD3) | -0.3 ~ +5.0 V |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Driving Mode | Active Matrix |
| Color Mode | Full Color (262K) |
The module uses an Active Matrix driving mode.
The operating temperature range is –20 °C to +60 °C.
VDD3 should be between –0.3 V and +5.0 V.
The display has a 24‑inch diagonal.
