The document describes a micro ATX motherboard that supports Intel CoreTM i7 / i5 / i3 and Pentium G6950 processors. It features dual channel DDR3 memory technology and supports memory expansion up to 2600+ (OC). The motherboard also supports features such as Turbo 50 overclocking, dual VGA output options, full HD 1080p Blu-ray/HD-DVD playback, PCIE Gigabit LAN, etc.

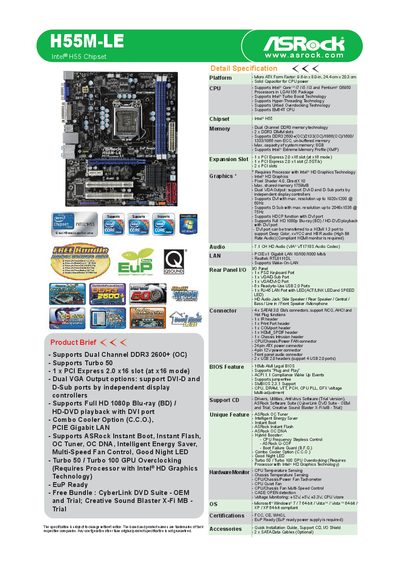

This manual describes the ASRock H55M-LE motherboard, a Micro ATX board with an Intel H55 chipset. It outlines supported CPUs, memory types, expansion slots, audio, LAN, and power features, as well as the bundled software utilities such as Instant Boot and Instant Flash.
The guide includes installation instructions, BIOS configuration options (Turbo 50, OC DNA, etc.), hardware monitoring capabilities, and details about the included trial software bundles (CyberLink, Creative Sound Blaster). It also explains the EU Energy‑Using Product (EuP) compliance and provides quick‑start tips for users.
| Form factor | Micro ATX 9.6" x 8.0" |
|---|---|
| Chipset | Intel® H55 |
| CPU socket | LGA1156 |
| Supported memory | DDR3 2600+ (OC), up to 8 GB, dual‑channel |
| Maximum memory capacity | 8 GB |
| PCI Express slots | 1 × PCIe 2.0 x16, 1 × PCIe 2.0 x1, 2 × PCI |
| SATA ports | 4 × SATA 3.0 Gb/s |
| USB ports (rear) | 6 × USB 2.0 |
| LAN | Realtek RTL8111DL Gigabit Ethernet |
| Audio codec | VIA YT1718S 7.1‑channel HD Audio |
It supports processors in the LGA1156 package.
The board can hold up to 8 GB of DDR3 memory in dual‑channel mode.
It provides one PCIe x16 slot, one PCIe x1 slot, and two standard PCI slots.
Yes, it uses a Realtek RTL8111DL Gigabit Ethernet controller.
