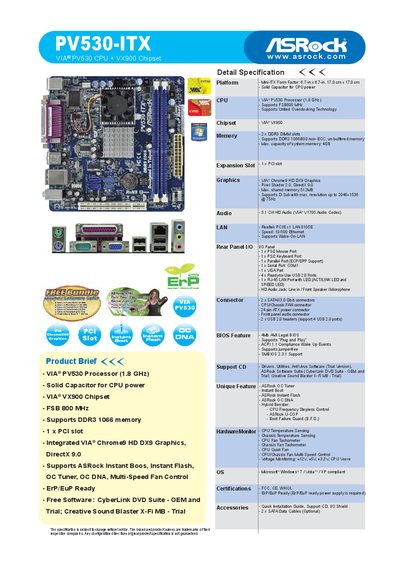

VIA® PV530 CPU + VX900 Chipset PV530-ITX is a Mini-ITX motherboard that uses VIA® PV530 processor and supports 1.8GHz frequency, supports 4GB of maximum memory capacity, 1 x PCI slot, VIA® Chrome9 HD DX9 Graphics, 5.1 CH HD Audio, Realtek PCIE x1 LAN 8105E Ethernet
This manual details the technical specifications of the ASRock PV530-ITX Mini‑ITX motherboard, including its VIA P5380 1.8 GHz processor, VIA VX900 chipset, DDR3 memory support, integrated VIA Chrome9 HD graphics, and onboard audio and LAN. It also lists the rear I/O connectors, SATA ports, and BIOS features such as AMI Legal BIOS and ACPI compliance.
The guide includes a quick‑start section for installing the ASRock AIWI software, using the OC DNA utility to save and share over‑clock profiles, and explains the Instant Boot and Instant Flash features that speed up system startup and BIOS updates.
| Form factor | Mini‑ITX (6.7" x 6.7") |
|---|---|
| CPU | VIA® P5380 Processor (1.8 GHz) |
| Chipset | VIA® VX900 |
| Memory slots | 2 × DDR3 DIMM, up to 4 GB |
| Supported memory | DDR3 1066/800 non‑ECC, un‑buffered |
| Maximum memory capacity | 4 GB |
| Graphics | VIA® Chrome9 HD DX9, max shared memory 512 MB, max resolution 2048×1536 |
| Audio | 5.1 CH HD Audio (VIA® V1705 Codec) |
| LAN | Realtek 10/100 Ethernet |
| Rear USB ports | 4 × USB 2.0 |
| SATA connectors | 2 × SATAII 3.0 Gb/s |
| BIOS | 4 Mb AMI Legal BIOS |
Use the OC DNA utility to save BIOS OC settings as a profile and then share the profile file with friends.
Instant Boot speeds up system startup up to ten times faster, about 4 seconds to boot Windows.
The motherboard provides four ready‑to‑use USB 2.0 ports on the rear I/O.
It supports DDR3 1066/800 non‑ECC, un‑buffered memory with a maximum capacity of 4 GB.
