ASRock Z77 Pro4 motherboard manual, introduces the function features and usage methods of the motherboard.

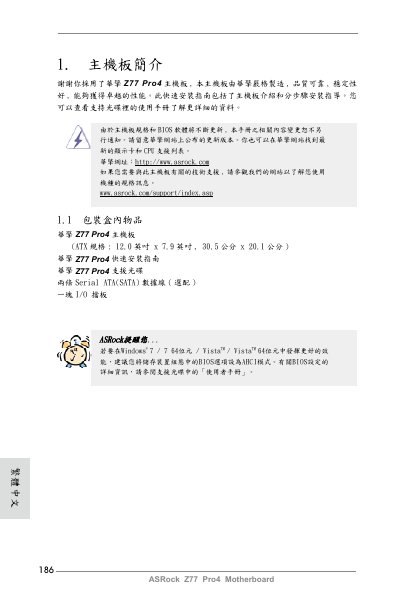

This guide introduces the ASRock Z77 Pro4 ATX motherboard, its key features, and the items included in the retail box. It also points users to the ASRock website for the latest BIOS and driver updates.
The document lists detailed hardware specifications, explains how to connect power, CPU, memory, storage, and peripheral connectors, and includes instructions for BIOS configuration, CMOS clearing, and jumper settings to help users install and configure the board correctly. This manual is written in Chinese.
| Form factor | ATX (12.0" x 7.9") |
|---|---|
| CPU socket | LGA1155 |
| Chipset | Intel Z77 |
| Audio codec | Realtek ALC892 |
| LAN controller | Realtek RTL8111E Gigabit Ethernet |
| BIOS | 64 Mb AMI UEFI with GUI |
It supports 2nd‑ and 3rd‑generation Intel Core i7, i5 and i3 processors with an LGA1155 socket.
Set the storage configuration option in the BIOS to AHCI mode.
