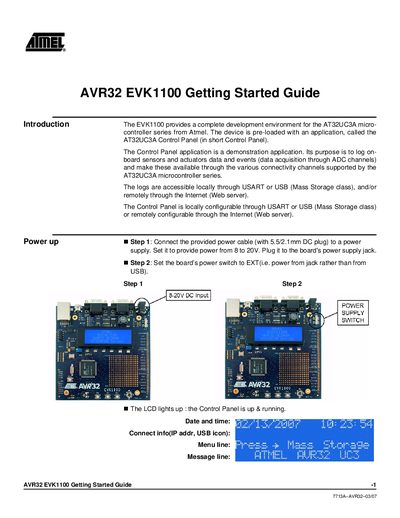

AVR32 EVK1100 Getting Started Guide, introduces the characteristics and usage methods of EVK1100.
The AVR32 EVK1100 is a development board that runs a pre‑loaded Control Panel application for logging sensor and actuator data. The Control Panel can be accessed locally via USART or USB and remotely through its built‑in web server.
The guide walks you through powering the board, setting a static IP address on a PC, connecting the Ethernet cable, and opening the Control Panel web page to view sensor data and control actuators.
| Power supply voltage | 8 V to 20 V |
|---|---|
| Power connector | 5.5 mm × 2.1 mm DC plug |
| Power switch setting | EXT (external supply) |
| LCD status indicator | Lights up when running |
| Default IP address | 192.168.0.2 |
| Example static IP address | 192.168.0.56 |
| Network cable type | UTP Patch 1.5 m Cat.5E |
Connect the supplied 5.5 mm × 2.1 mm DC power cable to a 8‑20 V source and set the board’s power switch to EXT.
Configure the PC with a static IP such as 192.168.0.56 and a subnet mask of 255.255.255.0; the EVK1100’s default address is 192.168.0.2.
The board uses 192.168.0.2 as its default IP address.
