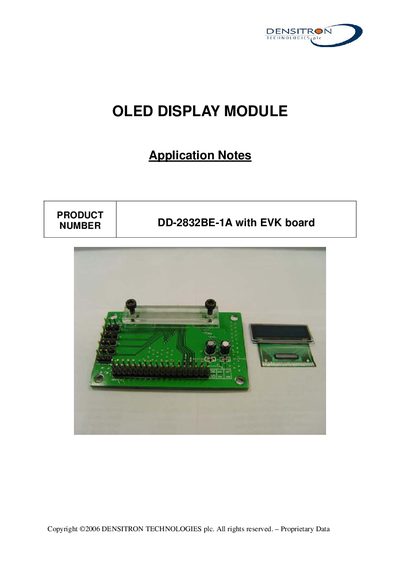

This document is an application note about the DD-2832BE-1A OLED display module, including EVK schematic, OLED symbol definition, timing characteristics, OLED connection with EVK and how to use the DD-2832BE-1A
This document provides technical information for the Densitron DD-2832BE-1A OLED display module and its evaluation board. It includes the EVK schematic, pin‑function definitions, timing characteristics for both 6800‑ and 8080‑series MPU interfaces, and connection details between the OLED and the EVK.
The notes also describe how to initialize and operate the driver, offering recommended initial register settings and example code snippets for resetting the device, configuring the display, and sending data commands.
| Supply voltage (VDD) | 2.4 V to 3.5 V |
|---|---|
| Operating temperature (TA) | -40 °C to 85 °C |
| Address hold time | 10 ns |
| Address setup time | 20 ns |
| System cycle time | 300 ns |
| Data setup time | 40 ns |
The driver operates from a supply voltage of 2.4 V to 3.5 V.
Pull the RES# pin low to initialize the chip, then release it.
Key timings include address hold 10 ns, address setup 20 ns, system cycle 300 ns, data setup 40 ns, and data hold 15 ns.
