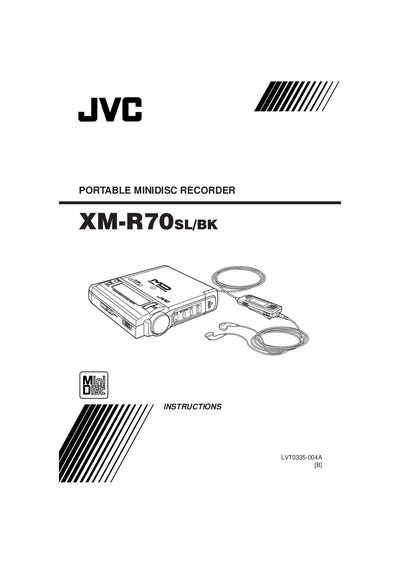

This is a user manual for a portable minidisc recorder.
This manual covers safety precautions for the laser‑based MiniDisc recorder, including warnings about moisture, fire risk, and proper handling of the power plug and battery. It also explains the supplied accessories, control layout, and power‑supply options such as rechargeable and dry‑cell batteries.
Detailed operating instructions describe normal play, hold mode, repeat and random play, disc information display, and troubleshooting tips. The specifications section lists audio performance, power requirements, dimensions, and battery life.
| Type | Minidisc digital |
|---|---|
| Sampling frequency | 44.1 kHz |
| Power requirements | DC 3.6 V (rechargeable battery) / DC 4.3 V (R6 size batteries x3, DCIN 6 V) |
| Dimensions | 81.7 mm × 19.5 mm × 88.9 mm |
| Number of channels | 2 (Stereo) / 1 (Mono) |
| Frequency response | 20 Hz to 20 kHz |
| Mass | Approx. 153 g (without battery) |
| Battery life (rechargeable) – playback | 10 hours |
| Battery life (rechargeable) – recording | 5 hours |
Load a MiniDisc; if none is loaded the unit shows “NO DISC” and powers off after about 10 seconds.
