MA/MB Series high frequency ceramic capacitors have extremely high Q and high power capabilities and are ideal for filtering, coupling and impedance matching in most RF circuits. The MA Series capacitors are available with military equivalent screening and offer the widest range of values and configurations. MA Series capacitors are designed for small, state-of-the-art circuit applications. They are small, easy to use and have excellent reliability.
The MA/MB series are miniature, high‑performance ceramic capacitors designed for RF and microwave applications. They offer very low dissipation factors, high Q at high frequencies, and robust environmental resistance.

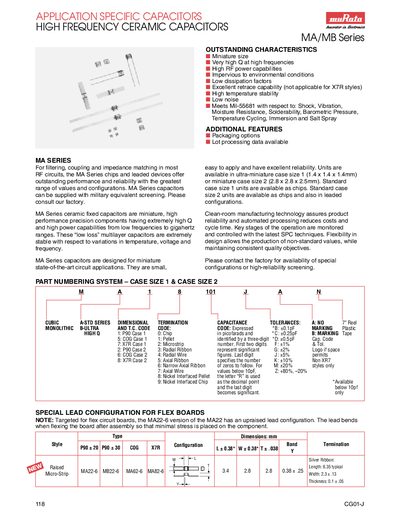

The document provides detailed specifications, dimensional drawings, packaging options, and environmental test compliance for the MA and MB sub‑series, including temperature coefficients, insulation resistance, and dielectric test voltages.
| Dissipation Factor (MA 18/28) | 0.05% max |
|---|---|
| Temperature Coefficient (MA 18/28) | P90 ±20 ppm/°C (–55 °C to +125 °C) |
| Insulation Resistance (MA 58/68) | 1000 kMΩ at +25 °C |
| Dielectric Test Voltage | 250 % of WVDC for 5 s |
