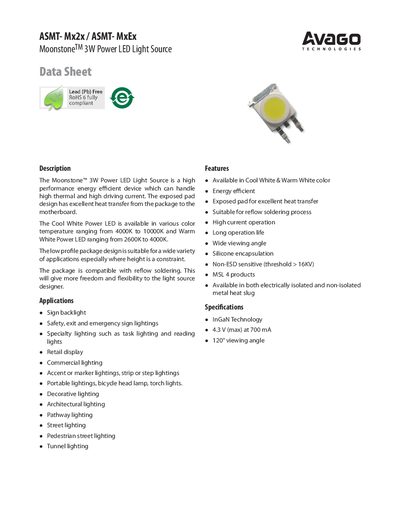

Moonstone™ 3W Power LED Light Source is a high performance energy efficient device which can handle high thermal and high driving current. The exposed pad design has excellent heat transfer from the package to the motherboard. The Cool White Power LED is available in various color temperature ranging from 4000K to 10000K and Warm White Power LED ranging from 2600K to 4000K. The low profile package design is suitable for a wide variety of applications especially where height is a constraint. The package is compatible with reflow soldering. This will give more freedom and flexibility to the light source designer.
The Moonstone™ 3 W Power LED Light Source is a high‑performance, energy‑efficient device available in Cool White (4000–10000 K) and Warm White (2600–4000 K). It features an exposed pad for excellent heat transfer, is RoHS‑compliant, and can be assembled using reflow soldering, making it suitable for height‑constrained designs.
The handbook includes detailed electrical and optical characteristics, package dimensions, part‑numbering conventions, handling precautions for moisture‑sensitive devices, and packaging options. It also provides guidance on storage, baking, and moisture‑sensitivity level‑4 (MSL‑4) requirements.
| Power Dissipation | 3010 mW |
|---|---|
| Reverse Voltage | 5 V |
| LED Junction Temperature (max) | 125 °C |
| Operating Metal Slug Temperature Range | -40 °C to +95 °C |
| Viewing Angle | 120° |
| Luminous Flux (Cool White, 700 mA) | 124–161 lm |
| Luminous Flux (Warm White, 700 mA) | 95–161 lm |
The LED has a viewing angle of 120 degrees.
