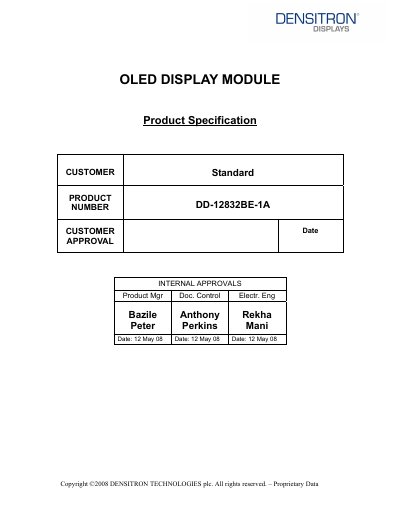

This document is a product specification for the DD-12832BE-1A OLED display module produced by DENSITRON TECHNOLOGIES plc. The document provides detailed information on the main features, mechanical specification, electrical specification, optical specification, functional specification, packaging and labelling specification, quality assurance specification, reliability specification, and handling precautions of the product.
The DD-12832BE-1A is a 128 × 32‑dot monochrome OLED display module with a passive‑matrix driver (SSD1305). It offers a compact size of 62 × 24 × 2 mm, a light‑blue colour, and operates from –30 °C to +70 °C.
The document details mechanical and electrical specifications, optical performance, reliability test results, and safety/handling precautions such as cleaning methods, static‑discharge protection, and storage recommendations.
| Display Format | 128 x 32 Dots |
|---|---|
| Overall Dimensions | 62.00 x 24.00 x 2.00 mm |
| Active Area | 55.02 x 13.10 mm |
| Viewing Area | 57.02 x 15.1 mm |
| Driver IC | SSD1305 |
| Operating Temperature | -30 ~ +70 °C |
| Storage Temperature | -40 ~ +80 °C |
| Weight | 5.80 g |
| Supply Voltage Vpp (typical) | 2.8 V |
The module measures 62.00 mm × 24.00 mm × 2.00 mm.
It operates from –30 °C to +70 °C.
Wipe gently with a soft cloth soaked in isopropyl alcohol, ethyl alcohol or trichlorotrifluorothane, avoiding dry or hard materials and aromatic solvents.
