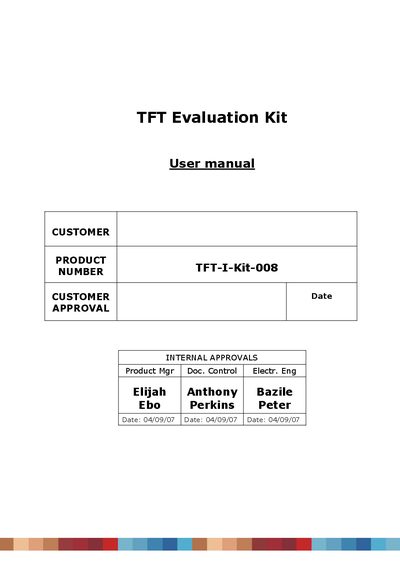

This manual contains the instructions on setting up and using the Densitron Kyocera TFT evaluation kit. The evaluation kit contains: - 1 x Kyocera TCG057VG1AC 5.7” TFT panel o Anti glare treatment o (640 x R.G.B) x 480 dots o COG LCD with single U shaped CFL Backlight. o Recommended inverter TDK CXA-L0612A-VJL o Dimensions: 144.0 x 104.8 x 13.0 mm o
This user manual provides step‑by‑step instructions for unpacking, wiring, and powering the Densitron TFT‑EKit‑008 evaluation kit. It details the required connections between the TFT panel, inverter, driver card, and single‑board computer, and includes safety warnings for handling the high‑voltage inverter.
Technical specifications for the TFT panel, electrical parameters, and interface signals are listed, along with BIOS and driver installation guidance. Contact information for technical support is provided at the end of the document.
| Panel dimensions | 144.0 x 104.8 x 13.0 mm |
|---|---|
| Effective viewing area | 117.2 x 88.4 mm |
| Dot pitch | 0.06 x 0.18 mm |
| Power input voltage (VDD) | 3.0 – 3.6 V (typical 3.3 V) |
| Current consumption | 210 – 270 mA |
| Input signal voltage (Low) | 0 – 0.3 VDD |
| Input signal voltage (High) | 0.7 VDD – VDD |
Connect the pink and white cables from the display to CN2 on the inverter.
A 12 V, 1.25 A power supply is included with the kit.
Check the jumper settings on the SBC according to the relevant sections of the manual and confirm they are correctly set.
