Memory Stick Connectors CB1 Series is a type of connector for connecting Memory Stick from Japanese connector manufacturer JST. There are three types: card push insert, card push insert and eject, and no eject.

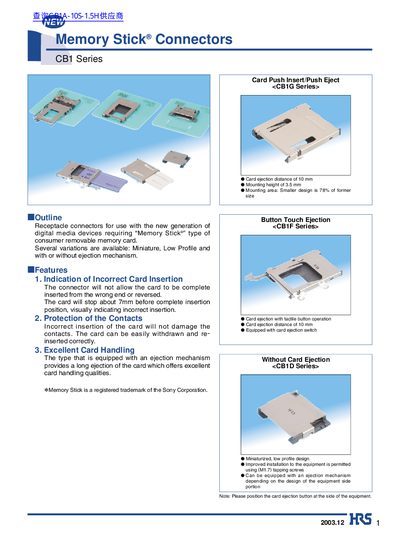

This handbook describes the HRS CB1 Series of Memory Stick® receptacle connectors, covering variants such as miniature, low‑profile, and those with or without an ejection mechanism. It outlines key features like incorrect‑insertion indication, contact protection, and ejection mechanisms.
Technical data include insulation resistance, voltage and temperature ratings, vibration and humidity performance, as well as recommended soldering profiles and packaging specifications. Handling precautions and mounting patterns are also provided to ensure reliable installation.
| Insulation resistance | 100 MΩ min. |
|---|---|
| Withstanding voltage | 500 V AC for 1 minute |
| Contact resistance (initial) | 100 mΩ max. at 100 mA DC |
| Relative humidity rating | 96 % max. |
| Voltage rating | 125 VAC |
| Operating temperature range | -20 °C to +85 °C |
| Storage temperature range | -40 °C to +85 °C (no condensation) |
| Contact resistance after humidity test | 40 mΩ max. |
| Number of contacts per connector | 10 |
The card ejection distance is 10 mm.
Each CB1 connector provides 10 contacts.
Preheat to 150 °C for 30‑90 s, solder at 235‑245 °C for up to 10 s, then hold at 220 °C for 10‑20 s.
The connectors have a minimum insulation resistance of 100 MΩ.
