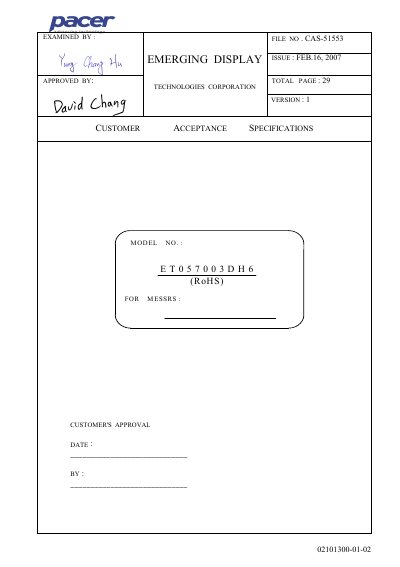

This document is about the customer acceptance specifications of E T 0 5 7 0 0 3 D H 6 (RoHS).
The ET057003DH6 is a 5‑inch TFT transmissive LCD module with a resolution of 320 × 240 RGB dots. Its active area measures 115.2 mm × 86.4 mm and it uses a white LED backlight. The module supports a 24‑bit colour depth (16.7 M colours) and is viewable at a 6 o’clock direction.
Key specifications include a power supply range of –0.3 V to 7.0 V, typical operating voltage of 3.3 V, and a current consumption of up to 400 mA. Electrical timing parameters such as a 6.4 MHz dot‑data clock and frame frequency of 60‑90 Hz are defined, while optical performance lists a contrast ratio of 200‑300, response times of 15‑30 ms (rise) and 35‑50 ms (fall), and brightness around 330‑380 cd/m². The document also provides handling and safety instructions to prevent static damage and mechanical shock.
| Resolution | 320 W × 240 H RGB |
|---|---|
| Module size (without FPC) | 124.7 mm W × 100.0 mm H × 7.5 mm D |
| Active area (LCD) | 115.2 mm W × 86.4 mm H |
| LCD type | TFT, transmissive |
| Backlight | White LED |
| Power supply voltage range | -0.3 V to 7.0 V |
| Typical power supply voltage | 3.3 V |
| Maximum current consumption | 400 mA |
| Frame frequency | 60‑90 Hz |
| Dot data clock | 6.4 MHz |
| Contrast ratio | 200‑300 |
| Response time (rise) | 15‑30 ms |
| Response time (fall) | 35‑50 ms |
| Brightness | 330‑380 cd/m² |
The module can operate from –10 °C to 70 °C.
It uses a white LED backlight.
The absolute maximum power supply voltage is 7.0 V.
