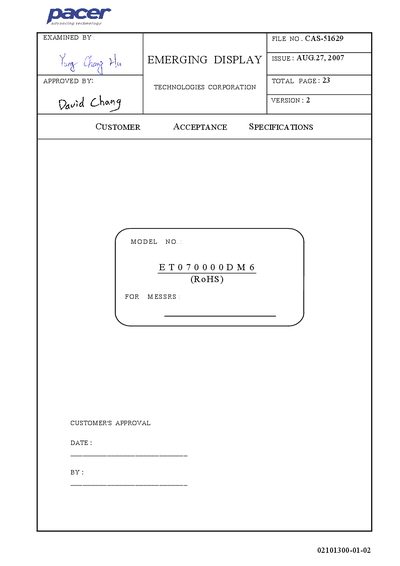

This document is a specification for the Emerging Display module, including mechanical specifications, optical characteristics, and outline dimensions.
The Emerging Display ETO70000DM6 is a RoHS‑compliant LCD module with a 800 × 480 RGB dot matrix, 0.0635 × 0.1905 mm dot size and a 262K (18‑bit) color depth. It features a TFT, transmissive, anti‑glare panel with a white LED backlight and a viewing direction of 6 o'clock.
The document provides mechanical dimensions (165 × 104 × 10 mm without FPC), electrical characteristics (typical 3.3 V supply, 600 mA current), absolute maximum ratings (‑30 °C to 80 °C, 90 %RH at 60 °C) and detailed operation, testing and safety guidelines for handling the module.
| Module size (without FPC) | 165 W × 104 H × 10 D mm |
|---|---|
| Typical power supply voltage | 3.3 V |
| Maximum power supply current | 600 mA |
| Frame frequency | 60 – 90 Hz |
| Operating temperature range | -30 °C to 80 °C |
| Maximum humidity (60 °C) | 90 %RH |
The module can operate from –30 °C up to 80 °C.
The typical supply voltage is 3.3 V.
