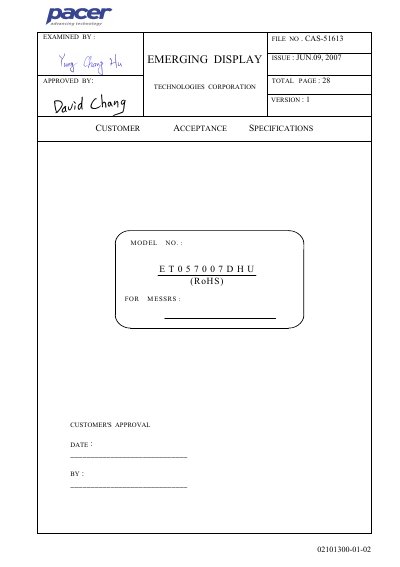

This document is the customer acceptance specifications of E T 0 5 7 0 0 7 D H U (RoHS) product, including general specifications, mechanical specifications, absolute maximum ratings, electrical characteristics, timing chart, optical characteristics, outline dimensions, block diagram, detail drawing of dot matrix, interface signal and so on
This document provides the full set of specifications for the Emerging Display ET057007DHU LCD module, including general, mechanical, electrical and optical parameters, as well as timing charts and interface signals. It also details the testing conditions, inspection criteria, and safety notices for handling the module.
The specification is intended for customers to verify compliance with RoHS requirements and to guide proper integration, power sequencing, and environmental limits during design and assembly.
| Number of dots (RGB) | 640W × 480H |
|---|---|
| Module size (mm) | 147.6W × 100.0H × 12D |
| Effective area (mm) | 117.2W × 88.4H |
| Active area (mm) | 116.2W × 87.4H |
| Dot size (mm) | 0.06W × 0.18H |
| Pixel size (mm) | 0.18W × 0.18H |
| LCD type | TFT, transmissive |
| Color depth | 16.7M (24‑bit) |
| Backlight | White LED |
| Power supply VCC (typical) | 3.3 V |
| Power dissipation (max) | 1.28 W |
| Forward current (max) | 0.06 A |
| Reverse voltage (max) | 45 V |
The maximum power voltage (VCC) is 7.0 V.
The typical supply voltage (VCC) is 3.3 V.
The display has 640 × 480 RGB dots.
The module uses a white LED backlight.
