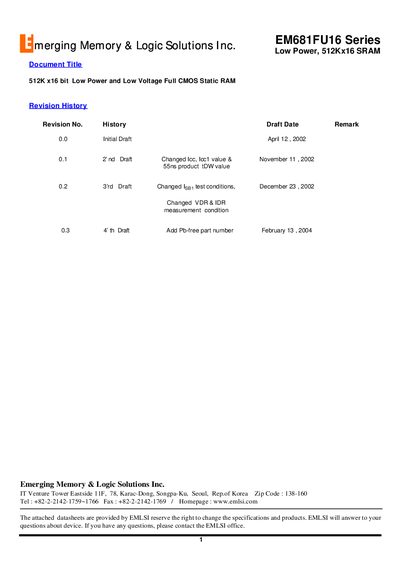

This is a low power 512Kx16 SRAM
The EM681FU16 Series is a Low Power, 512K x 16 bit Static RAM fabricated by Emerging Memory & Logic Solutions Inc. using advanced full CMOS process technology. The device supports an industrial temperature range of -40 to 85°C and includes Chip Scale Package (CSP) options for system design flexibility.
| Organization | 512K x 16 bit |
|---|---|
| Process Technology | 0.18um Full CMOS |
| Power Supply Voltage | 2.7V ~ 3.3V |
| Low Data Retention Voltage | 1.5V (Min.) |
| Package Type | 48-FPBGA 8.0x10.0 |
| Operating Temperature Range | -40 to 85°C |
The device supports an industrial temperature range from -40°C to +85°C.
The minimum low data retention voltage is 1.5V, supporting battery back-up operation.
