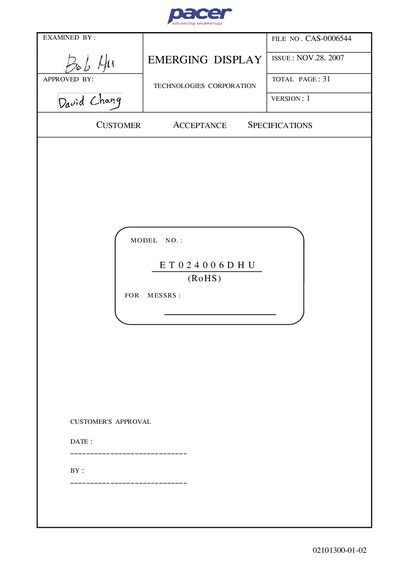

This document is a customer acceptance specification, including overall specifications, mechanical specifications, absolute maximum ratings, electrical characteristics, timing characteristics, optical characteristics, outline dimensions, block dimensions, dot matrix detailed drawing, interface signal, etc.
The Emerging Display ET024006DHU is a TFT transmissive LCD module with a 240 × 320 dot matrix, white LED backlight, and parallel/serial interfaces. The document provides detailed mechanical dimensions, electrical ratings, timing parameters, and optical characteristics required for integration and verification.
Key sections include general and mechanical specifications, absolute maximum ratings, electrical and timing characteristics, power supply requirements, touch‑panel specifications, and inspection criteria. Safety and handling instructions are also included to ensure reliable operation and compliance with RoHS standards.
| LED backlight power dissipation | 324 mW |
|---|---|
| LED backlight forward current | 90 mA |
| LED backlight reverse voltage | 5 V |
| Input power supply voltage (max) | 46 V |
| Operating temperature range | -20 °C to 70 °C |
The LED backlight forward current is specified as 90 mA.
Storage temperature must not exceed -30 °C for 48 hours or 80 °C for 168 hours.
The input voltage rating is up to 46 V.
The LED backlight power dissipation is limited to 324 mW.
