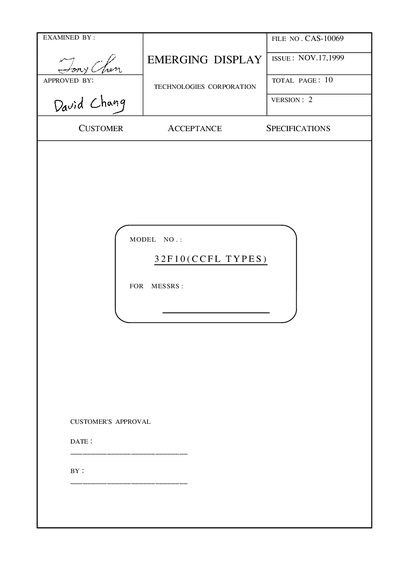

This document is the customer acceptance specifications for EMERGING DISPLAY 32F10(CCFL TYPES), which mainly describes the general specifications, mechanical specifications, absolute maximum ratings, electrical characteristics, and timing characteristics of the product.
This document is a customer acceptance specification datasheet for the EMERGING DISPLAY TECHNOLOGIES CORPORATION model 32F10(CCFL TYPES) liquid crystal display (LCD) module. It provides comprehensive technical data including general and mechanical specifications, absolute maximum ratings, electrical characteristics, timing diagrams, optical properties, and interface signal definitions.
| Number of Dots | 320W * 240H |
|---|---|
| Module Size (Max) | 167.1 x 109.0 x 11.0 mm |
| Effective Area | 120.0 x 90.0 mm |
| Dot Pitch | 0.36 x 0.36 mm |
| LCD Type Code | D (Transflective CCFL) |
| Driving Method | 1/240 Duty Multiplex Drive |
| Power Supply Voltage (Logic) | 5.0 V |
| Operating Temperature | -10 to 60 C |
The recommended inverter is IA-EM02A.
No, the CCFL backlight is not available to function below 0 C.
The effective area measures 120.0W x 90.0H mm.
