This document is a specification sheet for Emerging Display, providing information on the product's mechanical specifications, electrical characteristics, optical characteristics, etc.

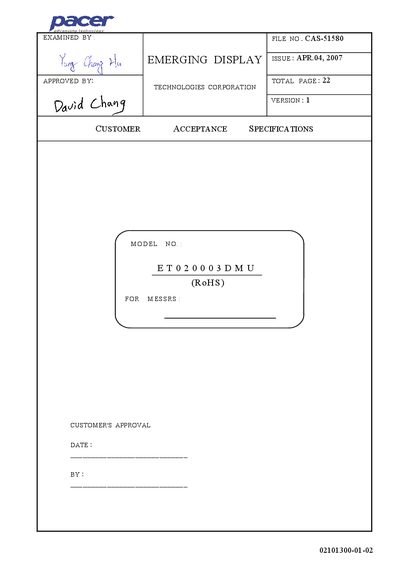

This document provides the acceptance specifications for the Emerging Display ET020003DMU LCD module. It includes general, mechanical, electrical and optical characteristics, as well as environmental limits and safety requirements.
Key sections cover maximum ratings, power supply requirements, interface signals, dimensions, testing conditions, lifetime expectations, operation procedures, and handling notices to ensure reliable performance and compliance with RoHS standards.
| Input voltage range | -0.3 V to 46 V |
|---|---|
| Operating temperature range | -20 °C to 70 °C |
| Viewing angle | >10° |
The module can operate up to 70 °C.
Input signals must not be supplied before the power supply reaches the specified value of 5 V ± 0.25 V.
