This document is about the product specification of the OLED module supplied by CMEL. The product features active matrix driving mode, full-color display (16M color), HX5116 driver IC, and 8-bit serial RGB and 24-bit parallel RGB interfaces. It is suitable for applications such as portable DVD, PMP, GPS, and photo frame.

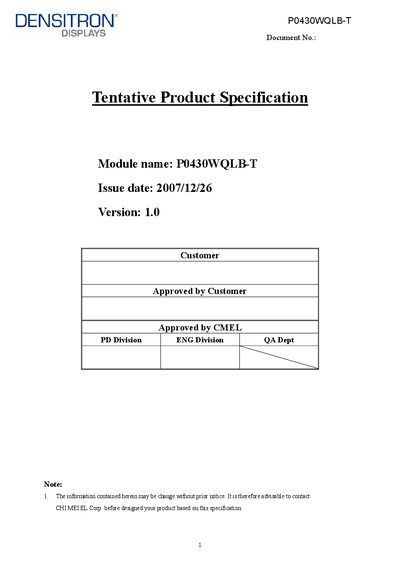

This document provides a tentative product specification for the Densitron P0430WQLB‑T OLED display module. It outlines the driving mode, color capabilities, interface options and typical applications such as portable DVD players, GPS units and photo frames.
Key mechanical dimensions, maximum ratings, and detailed DC and AC electrical characteristics are listed, along with reliability test notes and packaging information. The data is intended for design engineers to evaluate suitability for their products.
| Diagonal Size | 43 Inch |
|---|---|
| Resolution | 480 RGB x 272 |
| Pixel Pitch | H: 0.198 µm, V: 0.198 µm |
| Active Area | 95.0 x 53.8 mm |
| Thickness | 3.05 mm |
| VCC Logic Supply Voltage | -0.3 to +3.6 V |
| Operating Temperature | -20 to +60 °C |
| Serial DCLK Frequency | 33.3 MHz |
| Parallel DCLK Frequency | 11.1 MHz |
It uses an Active Matrix driving mode.
The module supports Full Color with 16 M colors.
The VCC logic supply voltage ranges from –0.3 V to +3.6 V.
