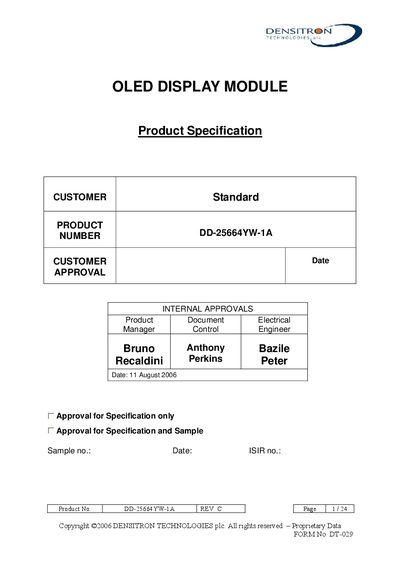

This document details the features and specifications of the DD-25664YW-1A OLED display module.
The DD-25664YW-1A is a 2.80‑inch passive‑matrix OLED display with a 256 × 64 dot format, monochrome yellow output and 16 grey scales. It measures 84 mm × 25.8 mm × 2.2 mm, weighs 9.1 g, and uses the STV8105 driver IC. The module operates from –20 °C to +70 °C and can be stored from –30 °C to +80 °C.
The document provides detailed mechanical, electrical, optical and functional specifications, as well as packaging, quality assurance, reliability testing and handling precautions. It includes absolute maximum ratings, typical supply voltages, current consumption, and recommended cleaning and storage procedures for safe use.
| Display Format | 256 x 64 Dots |
|---|---|
| Overall Dimensions | 84.00 x 25.80 x 2.20 mm |
| Screen Size | 2.80" |
| Driver IC | STV8105 |
| Typical Supply Voltage Vpp | 3.3 V |
| Typical Program Voltage | 14 V |
| Weight | 9.1 g |
| Operating Temperature Range | -20°C ~ +70°C |
| Storage Temperature Range | -30°C ~ +80°C |
The absolute maximum supply voltage Vpp is 4.6 V.
Lightly wipe the display with a soft cloth soaked in isopropyl alcohol, ethyl alcohol or trichlorotrifluorothane, avoiding dry or hard materials and aromatic or ketonic solvents.
The module is rated for operation from –20 °C to +70 °C.
