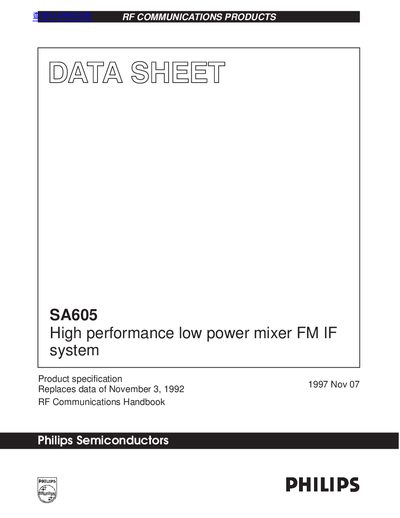

The SA605 is a high performance low power mixer FM IF system with features including mixer/oscillator, limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator (RSSI), and voltage regulator.
The SA605 is a monolithic FM IF system that combines a mixer/oscillator, two limiting IF amplifiers, a quadrature detector, muting, a logarithmic RSSI and a voltage regulator. It targets cellular radio, high‑performance communications receivers, single‑conversion VHF/UHF receivers and other RF applications.
The device is offered in 20‑lead DIP, SOL and SSOP packages and operates from a 6 V supply with typical 5.7 mA current draw. Key features include a 13 dB mixer conversion gain at 45 MHz, 4.6 dB noise figure, 25 MHz IF bandwidth and temperature‑compensated RSSI with over 90 dB dynamic range.
| Supply voltage range | 8.0 V to 45 V |
|---|---|
| Typical current drain | 5.7 mA at 6 V |
| Mixer conversion power gain | 13 dB at 45 MHz |
| Mixer noise figure | 4.6 dB at 45 MHz |
| IF bandwidth | 25 MHz |
The SA605 draws about 5.7 mA typical at a 6 V supply.
The mixer provides a conversion power gain of 13 dB at 45 MHz.
