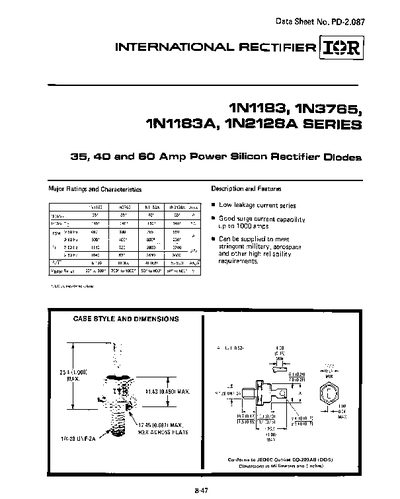

The 1N1183, 1N3765, 1N1183A and 1N2128A series are 35‑, 40‑ and 60‑amp power silicon rectifier diodes. They feature low leakage current, high surge capability and are qualified for military and aerospace reliability requirements.
The datasheet provides case dimensions (DO‑203AB), voltage and current ratings, thermal‑mechanical specifications, and maximum allowable case temperature. Electrical characteristics such as forward voltage, reverse voltage, and surge current are listed for various operating conditions.
| Maximum surge current | up to 1000 A |
|---|---|
| Leakage current | Low leakage |
| JEDEC case outline | DO‑203AB (DO‑5) |
The diodes can handle surge currents up to 1000 A.
They conform to JEDEC Outline DO‑203AB (DO‑5).
