The ISL84516 and ISL84517 are precision analog switches designed for ±1.5V to ±6V supplies. They are suitable for battery powered equipment due to their low power consumption, low leakage currents, and fast switching speeds. Excellent RON flatness maintains signal fidelity over the whole input range, while micro packaging alleviates board space limitations.
The Intersil ISL84516 and ISL84517 are precision analog switches designed for operation from +1.5 V to +6 V supplies. They feature low power consumption (350 µW), low leakage currents (20 nA max), and fast switching speeds (40 ns turn‑on, 30 ns turn‑off). The devices are offered in 8‑lead SOIC and 5‑lead SOT‑23 packages and are suitable for battery‑powered, portable, and high‑frequency applications.

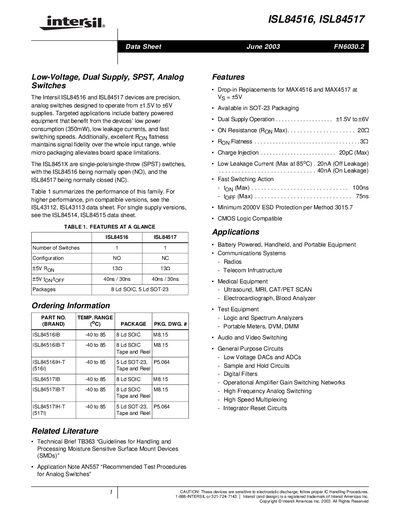

The datasheet provides detailed electrical specifications, absolute maximum ratings, pin‑out diagrams, and recommended protection methods. It also includes typical performance curves, package dimensions, and ordering information for both normally‑open (NO) and normally‑closed (NC) configurations.
| Supply Voltage Range | +1.5 V to +6 V |
|---|---|
| On‑Resistance (Ron) at +5 V | 13 Ω |
| Turn‑On Time (ton) | 40 ns |
| Turn‑Off Time (toff) | 30 ns |
| Maximum ESD Rating | >2 kV (MIL‑STD‑883 Method 3015) |
| Off‑Leakage Current (max at 85 °C) | 20 nA |
| Number of Switches | 1 |
| Configuration | NO (ISL84516) / NC (ISL84517) |
| Package Types | 8‑lead SOIC, 5‑lead SOT‑23 |
The ISL84516 operates from +1.5 V to +6 V supplies.
The typical on‑resistance is 13 Ω.
They are rated for greater than 2 kV per MIL‑STD‑883 Method 3015.
No, single‑supply operation is not recommended; use the ISL84514/ISL84515 versions for that.
