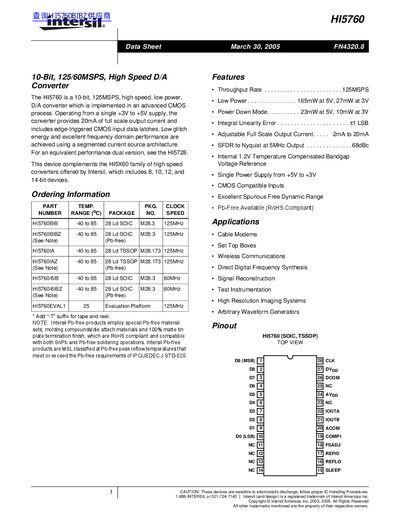

The HI5760 is a 10-bit, 125MSPS high speed, low power D/A converter implemented in an advanced CMOS process. Operating from a single +3V to +5V supply, the converter provides 20mA of full scale output current and includes edge-triggered CMOS input data latches. Low glitch energy and excellent frequency domain performance are achieved using a segmented current source architecture. For an equivalent performance dual version, see the HI5728. This device complements the HI5X60 family of high speed converters offered by Intersil, which includes 8, 10, 12, and 14-bit devices.
The HI5760 is a 10‑bit, 125 MSPS high‑speed D/A converter implemented in an advanced CMOS process. It operates from a single +3 V to +5 V supply and delivers up to 20 mA full‑scale output current while consuming as little as 165 mW at 5 V.
The device offers low glitch energy, excellent spurious‑free dynamic range (up to 75 dBc), and a range of package options (SOIC, TSSOP). Detailed electrical specifications, absolute maximum ratings, and typical performance curves are provided for design reference.
| Resolution | 10 bits |
|---|---|
| Maximum Clock Rate | 125 MHz |
| Power Consumption (5 V) | 165 mW |
| Full Scale Output Current | 2 mA to 20 mA |
| SFDR (125 MSPS, 10 MHz span) | 75 dBc |
The device supports a maximum clock rate of 125 MHz.
It operates from a single supply voltage of +3 V to +5 V.
The full‑scale output current can be adjusted between 2 mA and 20 mA.
Typical power consumption is 165 mW at a 5 V supply.
