TD-8816 ADSL2/2+ Ethernet Router's specifications

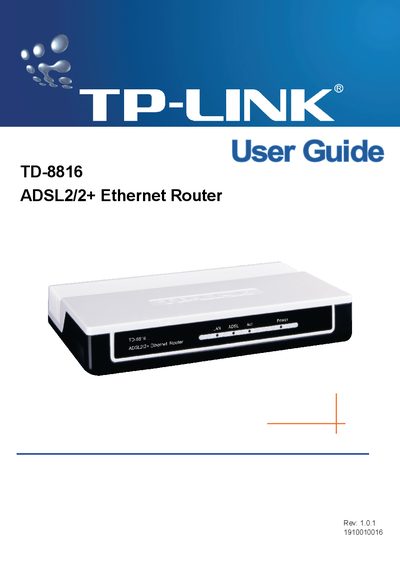

The TD-8816 is an ADSL2/2+ Ethernet router designed for simple, cost‑effective broadband connectivity in a private Ethernet network. The guide begins with an overview of the device, its main features such as 10/100 Mbps LAN, RJ‑11 port, and built‑in firewall, and lists the items included in the package.
It then walks the user through hardware installation, quick start procedures, and detailed software configuration via the web‑based utility, covering interface setup, advanced settings, QoS, VLAN, and maintenance tasks. An appendix provides the full technical specifications and regulatory compliance information.
| Supported Standards and Protocols | ANSI 11.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, IEEE 802.3, IEEE 802.3u, TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT, CWMP |
|---|---|
| LAN Port | 10/100M Auto‑Negotiation RJ45 (Auto MDI/MDIX) |
| RJ11 Port | 1 RJ11 port |
| Maximum Line Length | 6.5 km |
| Downstream Data Rate | Up to 24 Mbps |
| Upstream Data Rate | Up to 3.5 Mbps (with Annex M enabled) |
| Working Temperature | 0 °C ~ 40 °C |
| Working Humidity | 10 % ~ 90 % RH (non‑condensing) |
| Storage Temperature | -40 °C ~ 70 °C |
| Storage Humidity | 5 % ~ 90 % RH (non‑condensing) |
Connect a computer to the router’s LAN port and open a web browser; the utility is reachable via the local Ethernet network.
The router supports downstream speeds up to 24 Mbps and upstream speeds up to 3.5 Mbps (when Annex M is enabled).
