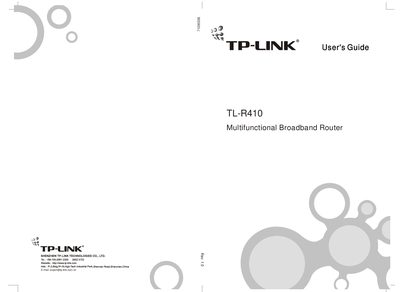

This document is the user's guide for TL-R410 Multifunctional Broadband Router. The document provides information about the usage and specifications of the product, as well as detailed steps for installation and configuration.
This guide introduces the TL‑R410 router, its hardware layout, and the package contents. It explains how to install the device, connect WAN and LAN cables, and power it on safely.
The manual then covers basic Internet access setup, TCP/IP configuration, DHCP, and advanced features such as Virtual Server, DMZ, firewall, and traffic statistics. An annex offers troubleshooting steps for common connection problems.
| Power input | External 9V~50Hz 0.8A |
|---|---|
| Operating temperature | 0°C to 40°C (32 °F to 104 °F) |
| Storage humidity | 5% to 90% RH |
| Auto‑MDI/MDIX support | All ports support auto‑MDI/MDIX |
Press and hold the Reset button until the M1 and M2 LEDs flash simultaneously, then release.
The default IP address is 192.168.1.1 with a subnet mask of 255.255.255.0.
