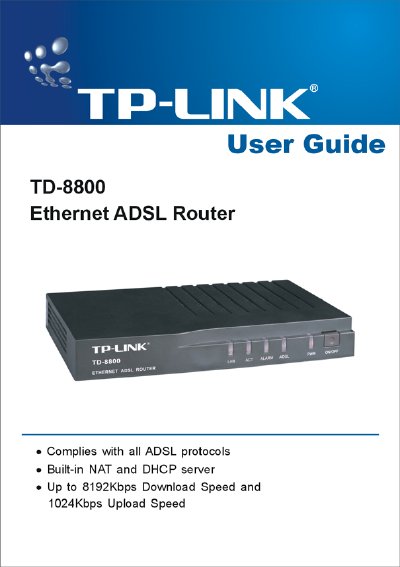

This document is the user guide for TP-LINK Technologies Co., Ltd.'s TD-8800 Ethernet ADSL Router. The document provides information on the product's main specifications, supported protocols, data transmission rate, ATM properties, system support, working environment, and electrical parameters.
This guide introduces the TP-LINK TD-8800 Ethernet ADSL Router, highlighting its high‑speed asymmetric data‑transmit mode, support for all ADSL standards, and built‑in NAT/DHCP server. Safety notices advise keeping the device away from water and electrical storms.
The manual covers hardware installation, including power, line, and LAN connections, LED indicator meanings, and reset procedures. It also details quick‑setup steps for various ADSL protocols (EoA, IPoA, PPPoA, PPPoE), DHCP configuration, modulation mode selection, and how to view current connection status.
| Maximum download speed | 8192 Kbps |
|---|---|
| Maximum upload speed | 1024 Kbps |
| Maximum line length | 5 km |
| AAL type | AAL5 |
| ATM service type | UBRATM |
| Supported PVCs | Up to 8 |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidity range | 10 % ~ 90 % |
| Adapter power | 9 V ~ 0.8 A |
| Maximum power consumption | 4.5 W |
Press the reset button three times; the router will restore the factory defaults.
The router has a red power indicator and four green function indicators showing power status, DSL line status, data transmission, and LAN connection.
The router can achieve up to 8192 Kbps download speed.
