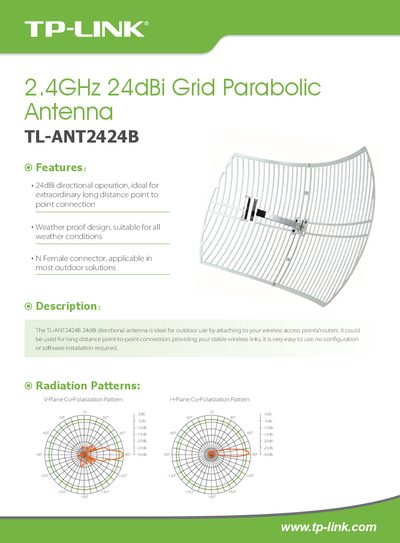

The TL-ANT2424B 24dBi Grid Parabolic Antenna is a TP-Link outdoor antenna for 2.4GHz. It has 24dBi gain and is suitable for outdoor long distance point to point connection. The antenna uses a N female connector, making it easy to install.
The TL-ANT2424B is a 2.4 GHz, 24 dBi grid parabolic antenna designed for outdoor point‑to‑point wireless links. It offers directional operation with a high gain to achieve long‑distance connections without any configuration or software installation.
The guide outlines the antenna's key features—weather‑proof construction, N‑female connector, and vertical or horizontal polarization—along with detailed specifications, mounting options (wall or pole), and optional accessories such as high‑power access points and cables. Installation is straightforward, and the package includes the antenna, mounting kits, and this user guide.
| Frequency Range | 24~2 4835GHzZ |
|---|---|
| Impedance | 50 Ohms |
| Interface | N Female |
| Polarization | Vertical or Horizontal |
| Mounting Mast Diameter | @30~@50 mm |
| Mounting | Wall Mount / Pole Mount |
| Survival Wind Speed | 216Km/hr (1 34Miles/hr) |
| Standards | RoHS, WEEE |
It uses an N‑female connector for outdoor installations.
It can be wall‑mounted or pole‑mounted using the supplied mounting kits.
The antenna is rated to survive wind speeds up to 216 km/h (approximately 134 mph).
