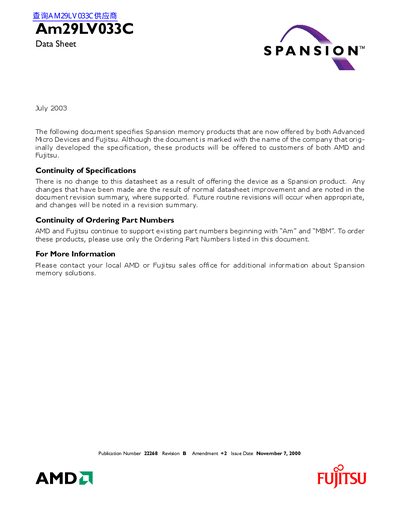

This datasheet describes AMD's Am29LV033C 32 Megabit (4 M x 8-Bit) CMOS 3.0 Volt-only Uniform Sector Single Port Flash Memory Device.
The Am29LV033C is a 32‑Mbit (4 M × 8‑bit) CMOS flash memory device offered in 63‑ball FBGA and 40‑pin TSOP packages. It operates from a single 3.0 V power supply and supports full voltage ranges of 2.7‑3.6 V for read/write and 3.0‑3.6 V for regulated operation. The device features zero‑power operation, fast access times, and a flexible sector architecture with 64 × 64 KB sectors.
The datasheet details electrical characteristics such as 70 ns access time, 7 µs/byte program time, 2 mA active read current at 1 MHz, and 200 nA standby current. It also describes command sets, pin functions, hardware reset, sector protection, erase‑suspend/resume, and power‑saving modes, providing designers with all necessary information for integration into microprocessor‑based systems.
| Capacity | 32 Mbit (4 M × 8‑bit) |
|---|---|
| Supply Voltage | 3.0 V (single‑supply) |
| Full Voltage Range | 2.7 V to 3.6 V |
| Regulated Voltage Range | 3.0 V to 3.6 V |
| Access Time | 70 ns (typical) |
| Program Time | 7 µs/byte typical |
| Active Read Current (1 MHz) | 2 mA |
| Active Read Current (5 MHz) | 10 mA |
| Standby Current | 200 nA |
| Write Endurance | ≥ 1 million cycles per sector |
| Data Retention | 20 years at 125 °C |
| Package Options | 63‑ball FBGA, 40‑pin TSOP |
| Sector Size | 64 KB |
It contains 64 sectors, each 64 KB in size.
Typical access time is as fast as 70 ns.
The standby (or automatic sleep) current is about 200 nA.
