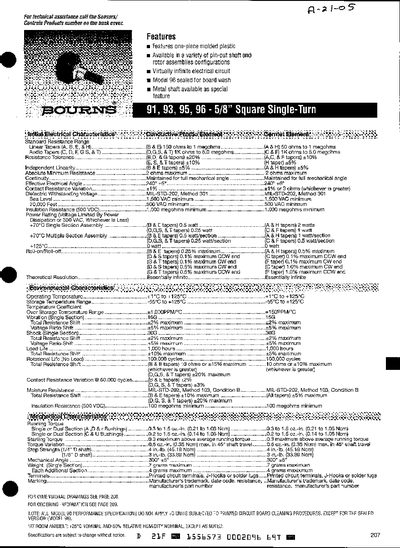

This datasheet provides the electrical and mechanical specifications for the 5/8" square single‑turn potentiometers offered in models 91, 93, 95 and 96. It lists the available resistance ranges, taper options, power ratings, temperature limits and dimensional details.
The document also includes ordering information, shaft and bushing options, and test standards such as MIL‑STD‑202. All values are given for the various taper codes (A, B, C, D, E, F, G, H, S, T) and indicate the performance limits for each configuration.
| Standard Resistance Range (B & E tapers) | 150 Ω to 1 MΩ |
|---|---|
| Standard Resistance Range (A & H tapers) | 50 Ω to 1 MΩ |
| Maximum Power Rating (B & E tapers) | 0.5 W |
| Maximum Operating Temperature | +125 °C |
| Rotational Life (No Load) | 100,000 cycles |
The part is rated for at least 500 VDC insulation resistance.
The potentiometer is specified for 100,000 cycles of no‑load rotation.
B & E tapers can dissipate up to 0.5 W per section.
