This document provides parameter information of Bourns inductance products, including inductance value, tolerance, reference frequency, maximum current, etc.
The SDR0302 series from Bourns consists of low‑profile (2.5 mm) SMD power inductors designed for portable communication equipment, camcorders, TVs, car radios and other applications. The series is RoHS compliant and offers a range of inductance values.

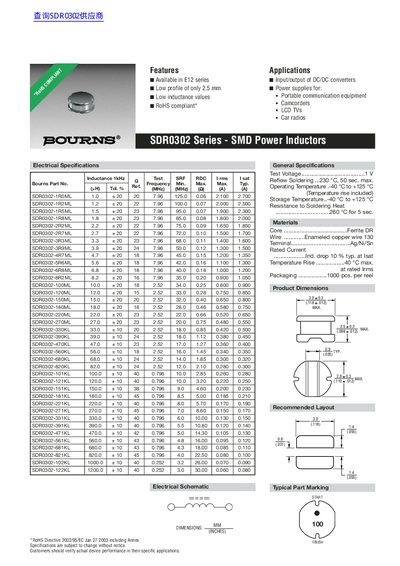

The datasheet lists electrical specifications such as operating temperature (40 °C to +125 °C), typical dimensions, thickness (0.10 mm), and packaging details (1000 pieces per reel). It also includes typical part markings and recommended layout information.
| Operating Temperature | 40 °C to +125 °C |
|---|---|
| Profile Height | 2.5 mm |
| RoHS Compliance | Yes |
| Packaging Quantity | 1000 pcs per reel |
| Thickness | 0.10 mm |
The SDR0302 series operates from 40 °C to +125 °C.
They have a low profile of only 2.5 mm.
Each reel contains 1000 pieces.
