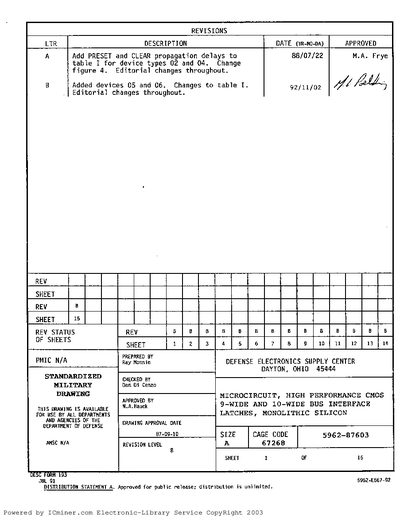

This document is a military drawing (Drawing Number 67268) describing requirements for Class B microcircuits. It specifies the device as a High Performance CMOS circuit designed for use in 9-wide and 10-wide bus interfaces, functioning primarily as a latch.
The datasheet provides detailed electrical performance characteristics, including absolute maximum ratings, recommended operating conditions, and specific limits for propagation delays, input/output currents, and capacitance. It covers various device types (01 through 06) and case outlines (K, L, and 3), referencing MIL-STD-883 test methods.
| Device function | High performance CMOS Latch |
|---|
The supply voltage must be between -0.5 V dc and +7.0 V dc.
The lead temperature limit for soldering is 10 seconds.
