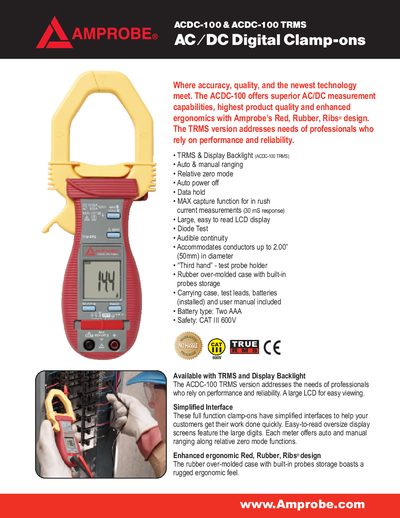

ACDC-100 & ACDC-100 TRMS AC/DC Digital Clamp-ons Where accuracy, quality, and the newest technology meet
The ACDC-100 and ACDC-100 TRMS are AC/DC digital clamp‑on meters designed for professional use. They feature a rugged rubber‑over‑molded case, a large easy‑to‑read LCD, auto/manual ranging, relative zero, data hold, diode test, audible continuity, and a built‑in probe holder. The TRMS version adds true‑RMS measurement for more accurate readings on non‑sinusoidal waveforms.
The meter includes a carrying case, test leads, batteries (two AAA), and a user manual. Optional accessories such as a 3000 A flexible clamp‑on attachment, thermocouple temperature attachment, and various test lead kits are available to extend functionality.
| DC Current (max 1000 A) TRMS | ±(1.5% Rdg + 4 LSD) |
|---|---|
| AC Current (max 800 A) TRMS | ±(1.5% Rdg + 5 LSD) |
| AC Voltage | ±(1.5% Rdg + 4 LSD) |
| DC Voltage | ±(0.5% Rdg + 3 LSD) |
| Resistance | ±(0.6% Rdg + 4 LSD) |
| Capacitance | ±(3.5% Rdg + 6 LSD) |
The meter is powered by two AAA batteries.
It is rated CAT III 600 V.
Optional accessories include a 3000 A flexible clamp‑on attachment, a single‑input thermocouple temperature attachment, various test lead kits, alligator clips, and a carrying case.
It can accommodate conductors up to 2.00 in (50 mm) in diameter.
