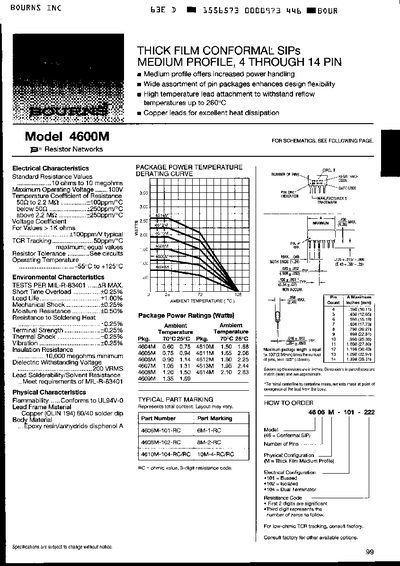

The handbook describes Bourns' 4600M thick‑film conformal SIP resistor networks. It covers medium‑profile devices with 4 through 14 pins (and optional 3, 15‑18 pins), high‑temperature lead attachment, and a range of resistance values from 10 Ω to 10 MΩ.
Key specifications include maximum operating voltage, temperature coefficients, tolerance, insulation resistance, and derating curves. The document also lists part markings, ordering codes, and physical characteristics such as flammability rating and material composition.
| Maximum Operating Voltage | 100 V |
|---|---|
| Resistor Tolerance | ±6 % |
| Dielectric Withstanding Voltage | 200 VRMS |
| Flammability Rating | UL94 V‑0 |
| Lead Frame Material | Copper (Alloy 194) 60/40 solder dip |
| Body Material | Epoxy resin/anhydride |
The 4600M resistor networks are rated for a maximum operating voltage of 100 V.
Standard versions are offered with 4 through 14 pins, and additional options include 3, 15, 16, 17, and 18 pin counts.
