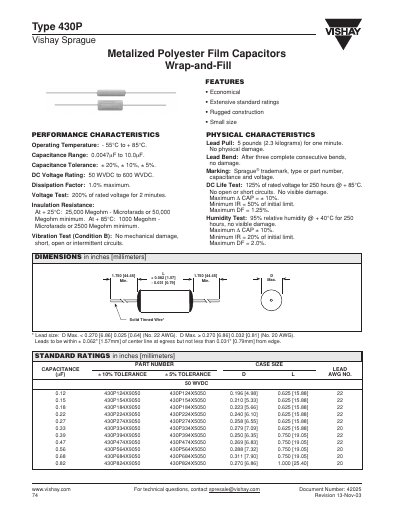

Performance characteristics of Vishay Sprague 430P capacitors, including operating temperature, capacitance range, capacitance tolerance, DC voltage rating, dissipation factor, voltage test, insulation resistance, vibration test, physical characteristics, marking, DC life test, humidity test and dimensions.
The Vishay 430P series are metalized polyester film capacitors offering a wide range of capacitance values from 0.0047 µF to 10 µF and voltage ratings up to 600 WVDC. The datasheet provides detailed performance characteristics such as operating temperature, dissipation factor and insulation resistance.
Physical characteristics include lead pull and bend specifications, dimensional data for various case sizes, and standard part numbers for different voltage and tolerance options. Ordering information and coding for capacitance and tolerance are also included.
| Operating Temperature | -55 °C to +85 °C |
|---|---|
| Capacitance Range | 0.0047 µF to 10.0 µF |
| DC Voltage Rating | 50 WVDC to 600 WVDC |
| Dissipation Factor | 1.0 % max |
| Insulation Resistance (25 °C) | ≥25,000 MΩ |
| Lead Pull | 5 lb (2.3 kg) for 1 min |
The capacitors operate from –55 °C up to +85 °C.
The series is rated from 50 WVDC up to 600 WVDC.
Capacitance values range from 0.0047 µF to 10.0 µF.
The dissipation factor is limited to 1.0 % maximum.
