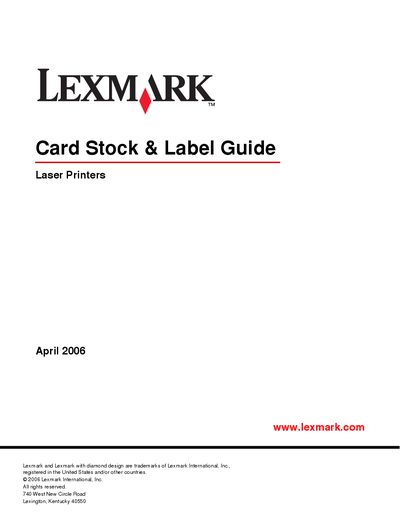

This guide provides information on how to use card stock and labels on Lexmark Laser Printers.
This guide provides recommendations for choosing appropriate card stock and label media for Lexmark laser printers. It covers printer series such as C, E, T, W, Optra, and X models, and explains how media characteristics affect print quality and reliability.
Key topics include basis weight, dimensions, environmental conditions, pre‑printed ink requirements, perforation and die‑cut guidelines, and testing procedures to ensure reliable printing and avoid jams or fuser damage.
| Operating temperature range | 15.5 °C to 32 °C (60 °F to 90 °F) |
|---|---|
| Maximum fuser temperature for pre‑printed inks | 225 °C (437 °F) |
| Maximum allowed curl on stock | 3 mm (0.125 in.) |
| Perforation distance from edge | 1.6 mm (0.06 in.) |
Lexmark printers are designed to operate between 15.5 °C and 32 °C (60 °F‑90 °F) with relative humidity of 8 % to 80 %.
The stock should not have a curl greater than 3 mm (0.125 in.) before loading into the printer.
Perforation lines should stop at least 1.6 mm (0.06 in.) from each edge to avoid jams.
Pre‑printed inks must withstand up to 225 °C (437 °F) without contaminating the printer.
