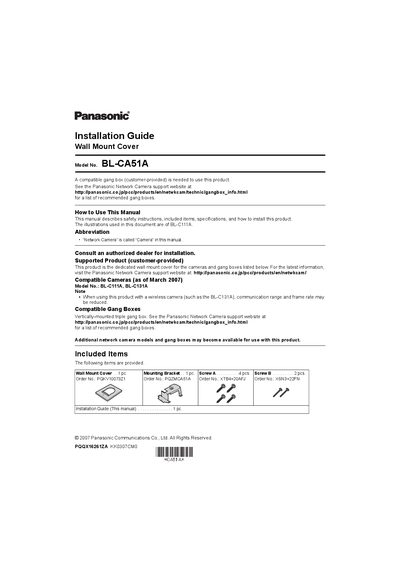

This document is an installation guide for the Panasonic Network Camera wall mount cover. It includes safety instructions, included items, specifications, and installation steps. It also provides a list of compatible camera models and gang box models for this product.
The guide details the BL-CA51A wall mount cover for Panasonic network cameras. It lists the compatible camera models (BL-C111A, BL-C131A) and the recommended vertically‑mounted triple gang boxes, and provides safety and item information.
Installation steps include securing the wall mount cover to the mounting bracket with the supplied screws, routing the LAN cable and AC adaptor through the gang box, connecting them to the camera, and attaching the bracket to the camera. The document also supplies dimensions and weight of the assembled cover.
| Dimension (W x H x D) | 136 mm × 177 mm × 59 mm |
|---|---|
| Weight | 190 g (0.42 lb) |
The cover is compatible with Panasonic network cameras model BL‑C111A and BL‑C131A.
The package contains one wall mount cover, one mounting bracket, four Screw A, and two Screw B.
A vertically‑mounted triple gang box is recommended; additional compatible gang boxes are listed on Panasonic’s support website.
