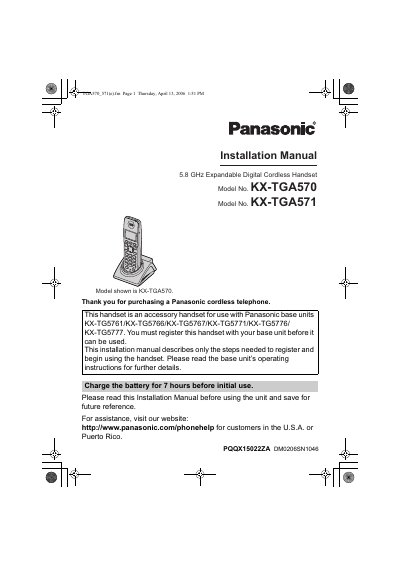

This is an installation manual for Panasonic KX-TGA570/571, which describes how to register and use the phone
This guide explains how to set up the Panasonic KX‑TGA570/KX‑TGA571 cordless handsets, including charger connection, battery installation, initial charging, and registration with a compatible base unit. It also provides optional headset connection and wall‑mounting instructions.
The manual lists technical specifications such as operating temperature, frequency range, dimensions, power output, and battery details, and includes FCC compliance and safety cautions for proper use.
| Operating environment | 5 °C – 40 °C |
|---|---|
| Handset frequency | 5.76 GHz – 5.84 GHz |
| Dimensions (handset) | 156 mm × 49 mm × 35 mm |
| Weight (handset) | ≈150 g (0.33 lb) |
| Power output | 200 mW (max) |
| Battery type | Ni‑MH 2.4 V, 830 mAh |
| Charger dimensions | 58 mm × 87 mm × 95 mm |
| Charger weight | ≈90 g (0.20 lb) |
| Power consumption (standby) | ≈1.1 W |
| Power consumption (maximum) | ≈3.4 W |
Charge the handset on the charger for 7 hours before the initial use.
Press and hold the INTERCOM button on the base until the IN USE indicator flashes, then press OK on the handset within 90 seconds.
The handset uses a rechargeable Ni‑MH battery rated at 2.4 V, 830 mAh.
The handset can operate between 5 °C and 40 °C.
