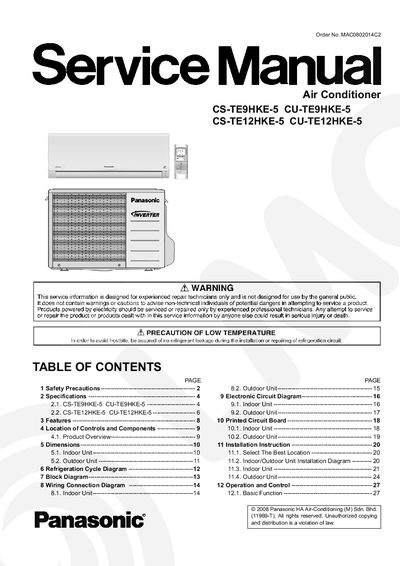

This document is the property of Panasonic HA Air-Conditioning (M) Sdn. Bhd. (11969-T) in 2008. Unauthorized copying and distribution is a violation of law. The document provides information on the safety precautions, specifications, features, location of controls and components, dimensions, refrigeration cycle diagram, block diagram, wiring connection diagram, electronic circuit diagram, and printed circuit board of the CS-TE9HKE-5 CU-TE9HKE-5 and CS-TE12HKE-5 CU-TE12HKE-5 air conditioners.
This service manual provides detailed safety precautions, technical specifications, wiring diagrams, and operation instructions for the Panasonic CS‑TE9HKE‑5 and CS‑TE12HKE‑5 indoor and outdoor units. It includes sections on features, dimensions, refrigeration cycle, block and wiring diagrams, as well as troubleshooting guides and self‑diagnosis functions.
The document also contains disassembly and assembly procedures, exploded views, and a comprehensive replacement parts list with part numbers, enabling technicians to perform maintenance, repairs, and upgrades safely and efficiently.
| Cooling capacity (indoor unit, CS‑TE9HKE‑5) | 2150 kCal/h |
|---|---|
| Heating capacity (indoor unit, CS‑TE12HKE‑5) | 3610 kCal/h |
| Input power (indoor fan motor) | 30 W |
| Refrigerant | R410A |
The units use the environmentally friendly refrigerant R410A.
The manual allows long piping up to 15 meters for the CS‑TE9/12HKE‑5 series.
The indoor unit operates on a single‑phase 230 V, 50 Hz power source.
