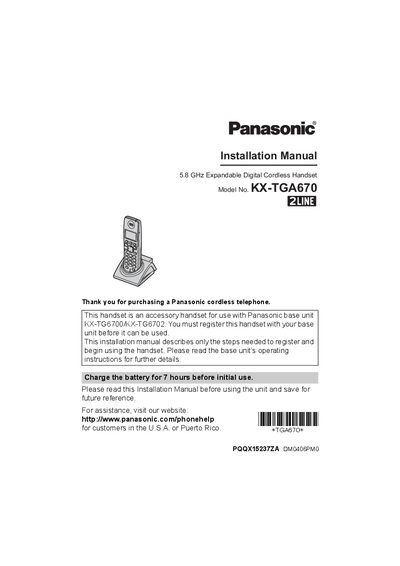

This is a Panasonic cordless telephone handset, model KX-TGA670
This manual provides step‑by‑step instructions for setting up the Panasonic KX‑TGA670 cordless handset. It covers connecting the charger, installing the Ni‑MH battery, charging procedures, and registering the handset with a compatible KX‑TG6700 or KX‑TG6702 base unit.
Additional sections describe optional accessories such as headsets, wall‑mounting the charger, technical specifications, FCC compliance, safety warnings, and customer service contact information.
| Operating environment | 5 °C – 40 °C (41 °F – 104 °F) |
|---|---|
| Handset frequency | 5.76 GHz – 5.84 GHz |
| Dimensions (handset) | 156 mm × 49 mm × 35 mm |
| Weight (handset) | ≈150 g (0.33 lb) |
| Power output | 200 mW (max) |
| Battery type | Ni‑MH 2.4 V, 830 mAh |
| Charger dimensions | 58 mm × 87 mm × 95 mm |
| Standby power consumption | ≈1.1 W |
| Maximum power consumption | ≈3.4 W |
Place the handset on the charger for 7 hours before initial use; a minimum of 15 minutes is enough for immediate use.
Press and hold {INTERCOM} on the base until the IN USE indicator flashes, then press {OK} on the handset and wait for a beep.
The handset is powered by a rechargeable nickel‑metal‑hydride (Ni‑MH) battery, 2.4 V, 830 mAh.
