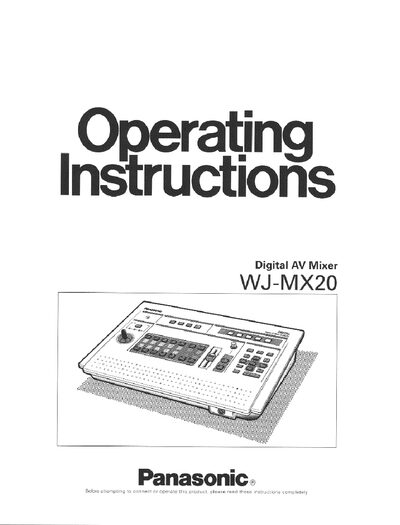

This manual covers the Panasonic WJ-MX20 Digital AV Mixer, describing its main features, safety precautions, and how to connect and operate the unit. It includes a Quick Start guide, detailed descriptions of video mix, wipe patterns, digital effects, and RS‑422 control.
Key sections include system connection, basic and advanced operations, connector information (RS‑422, GPI), video input notes, a glossary of terms, full specifications, and lists of standard and optional accessories.
| Source Inputs | 4 (SOURCE 1‑4) |
|---|---|
| Video Input | 1.0 V[p‑p]/75Ω NTSC composite, BNC connector |
| Audio Input | –6 dB s, 20 kΩ pin jack (L/R) |
| Power Consumption | Approx. 15 W |
| Dimensions | 420 mm (W) × 300 mm (H) × 88 mm (D) |
| Weight | 2.5 kg |
| Ambient Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Wipe Patterns | 298 patterns |
The unit provides 298 wipe patterns.
It consumes approximately 15 W.
The video input is a 1.0 V[p‑p]/75Ω NTSC composite signal via a BNC connector.
The mixer has four source inputs (SOURCE 1‑4).
