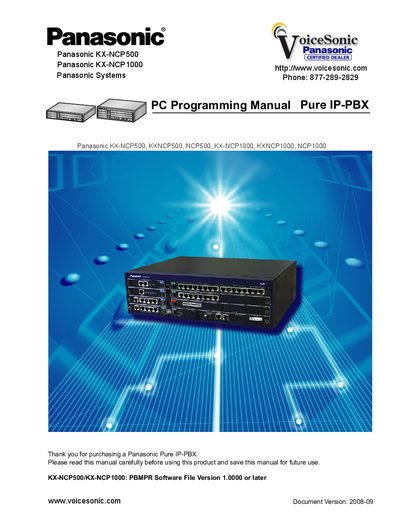

Panasonic KX-NCP500/KX-NCP1000 PC Programming Manual

This is the Panasonic KX-NCP500 KX-NCP1000 Pure IP-PBX Communication Assistant Quick Reference Guide, which introduces the functions, settings and installation of Communication Assistant

Brand: Panasonic
Category: Fax machine
Document type: Programming Manual
Language: English
Pages: 860
File format: PDF
File size: 2.5 MB
Published: 03 May, 2012
Updated: 30 September, 2023
Models: KX-NCP500, KX-NCP1000, KX-NCP500, KX-NCP1000
MD5 checksum: EA37C44080AAA243C347C7642D82E323
PDF: Panasonic KX-NCP500/KX-NCP1000 PC Programming Manual PDF

About this manual

This PC Programming Manual serves as a reference for configuring and programming the Panasonic Pure IP‑PBX (models KX‑NCP500 and KX‑NCP1000) via the Maintenance Console software. It includes safety notices, system backup procedures, and detailed descriptions of each programming function.

The manual is organized into sections covering an overview of programming, the Maintenance Console interface, utilities such as SD‑card backup and diagnostics, system settings, extension configuration, optional devices, and an appendix of feature programming references.

What's inside

Introduction
Maintenance Console Overview
Utilities
System Settings
Extension Configuration
Optional Devices
Feature Programming References
Appendix

Specifications

Supported optional card	Virtual 16‑Channel SIP Trunk Card
Backup storage	SD Memory Card

Frequently asked questions

What should I do if the PBX emits smoke or an abnormal smell?

Unplug the PBX from the AC outlet immediately and contact an authorized Panasonic Factory Service Center after the smoke stops.

Will the PC shut down or enter standby while the Maintenance Console is connected?

No. The PC will not perform any shutdown operation or enter power‑saving standby mode while the Maintenance Console is connected to the PBX.

Download PDF (2.5 MB)
