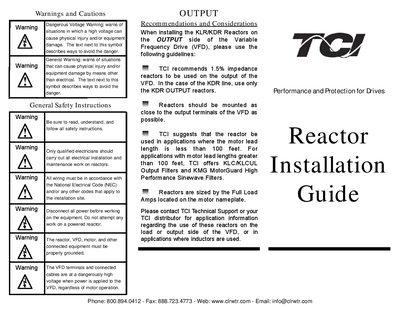

The guide begins with safety warnings and cautions, emphasizing that only qualified electricians should perform installation and that all wiring must follow the National Electrical Code. It stresses disconnecting power before any work and proper grounding of the reactor, VFD, motor and related equipment.
Installation recommendations are provided for both the output and input sides of a Variable Frequency Drive. Reactors should be mounted as close to the VFD as possible (recommended 10 ft or less), with a 3‑inch clearance on all sides in 40 °C ambient. The document details wiring diagrams for three‑phase and single‑phase connections, mounting options, and product specifications such as voltage class and current rating.
| Voltage Class | 3‑Phase, 600 V |
|---|---|
| Current Rating | 200 % rated current for 3 minutes |
| Ambient Temperature | 40 °C |
| UL Recognition | File E-116124 |
| Certifications | CE Marked, CSA Approved |
Disconnect all power before working on the equipment and ensure only qualified electricians perform the installation.
The reactor should be located as close to the drive as possible, preferably within 10 feet of cable length.
A clearance of 3 inches on all sides of the reactor is recommended for heat dissipation.
Yes, for single‑phase applications use coils A and C and isolate terminals B1 and B2.
